Diagram export

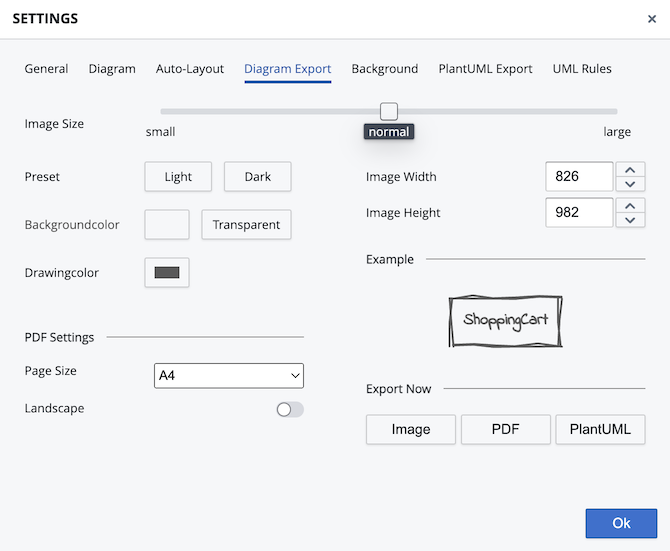

The image export settings dialog

The diagram export settings dialog.

This dialog allows you to adjust settings that affect the image and PDF export of your diagrams.

Image Size:
This setting affects only the PNG export. By default, the width and height of the exported image correspond to the actual dimensions used by the diagram (assuming a maximum whiteboard size of 4000 x 4000 pixels). This setting corresponds to the middle position of the slider. The lowest level reduces the image to one-eight of its actual size. In contrast, the highest level produces an output file eight times the original size.

Image Width and Height: 1.11
Besides using the slider to choose a predefined image scale, you can also enter the desired width and height manually into these fields, which will overwrite the slider setting. Note that the image will always keep its ratio, so when changing only the width/height, the other component will be adjusted automatically. Moving the slider again will reset your manual settings and go apply the predefined scaling again.

Export Now 1.13
These section allows you to export your diagram instantly as image, PDF or PlantUML.

Preset 1.8
During image export, you can choose either one of the predefined settings or select the background and drawing color of your image individually. These predefined settings will use the same colors as the light or dark color themes.

Background Color:
This color picker allows you to define the background color used when exporting the image. To adjust the opacity of the background, change the alpha value via the corresponding slider. A value of one results in a full opaque background color while changing the value to zero makes the background fully transparent.

Color picker for choosing a background color

Color picker for choosing a background color.

Drawing Color 1.8
This option lets you change the color used for all shapes and text elements within your diagram. A preview of your new setting is rendered in the right area. It gets updated as soon as you confirm the color picker dialog.

PDF Settings

1.11

With Version 1.11, the image settings and PDF settings are merged together, so all color options you defined for the image export will now also be applied when exporting to PDF.

Page Size:
Choose between common document sizes like Din A0 - Din A4 and various US formats like Letter, Legal, Executive etc. Your diagram will automatically be scaled to best fit into your choosen page format.

Landscape:
Choose between landscape and portrait mode.
